Technical Details

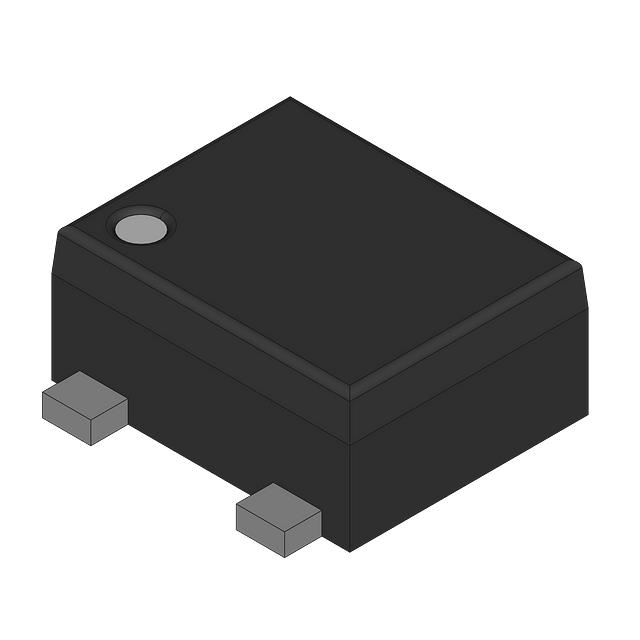

• Package / Case 3-SMD, Flat Lead
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 150°C (TA)
• Technology MOSFET (Metal Oxide)
• FET Type P-Channel
• Current - Continuous Drain (Id) @ 25°C 3.5A (Ta)
• Rds On (Max) @ Id, Vgs 69mOhm @ 1.5A, 2.5V
• Power Dissipation (Max) 1W (Ta)
• Vgs(th) (Max) @ Id 800mV @ 1mA
• Supplier Device Package SC-70FL/MCPH3
• Drive Voltage (Max Rds On, Min Rds On) 0.9V, 2.5V
• Vgs (Max) ±5V
• Drain to Source Voltage (Vdss) 12 V
• Gate Charge (Qg) (Max) @ Vgs 6.2 nC @ 2.5 V
• Input Capacitance (Ciss) (Max) @ Vds 1010 pF @ 6 V
