Technical Details

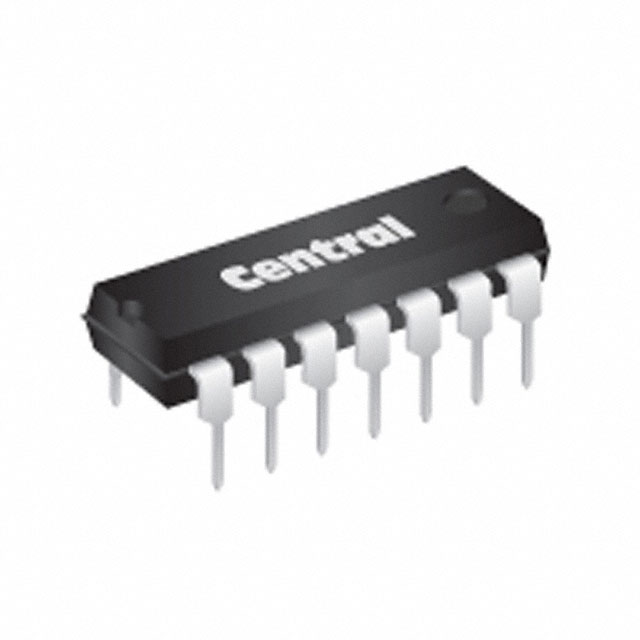

• Package / Case 14-DIP (0.300", 7.62mm)
• Mounting Type Through Hole
• Transistor Type 4 NPN (Quad)
• Operating Temperature -65°C ~ 150°C (TJ)
• Power - Max 1W
• Current - Collector (Ic) (Max) 1A
• Voltage - Collector Emitter Breakdown (Max) 50V
• Vce Saturation (Max) @ Ib, Ic 450mV @ 50mA, 500mA
• Current - Collector Cutoff (Max) 500nA (ICBO)
• DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 500mA, 2V
• Frequency - Transition 200MHz
• Supplier Device Package TO-116
