Technical Details

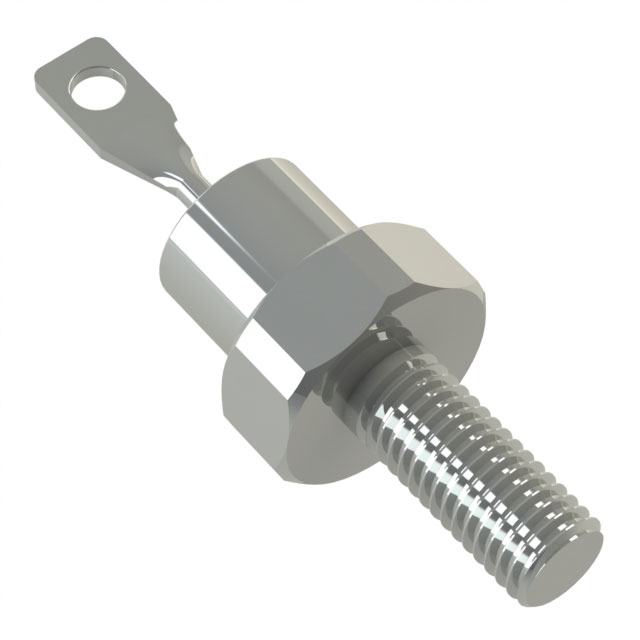

• Package / Case DO-203AA, DO-4, Stud
• Mounting Type Chassis, Stud Mount
• Speed Fast Recovery =< 500ns, > 200mA (Io)
• Reverse Recovery Time (trr) 35 ns
• Technology Standard
• Capacitance @ Vr, F 140pF @ 10V, 1MHz
• Current - Average Rectified (Io) 30A
• Supplier Device Package DO-4
• Operating Temperature - Junction -65°C ~ 175°C
• Voltage - DC Reverse (Vr) (Max) 200 V
• Voltage - Forward (Vf) (Max) @ If 975 mV @ 30 A
• Current - Reverse Leakage @ Vr 15 µA @ 200 V
