Technical Details

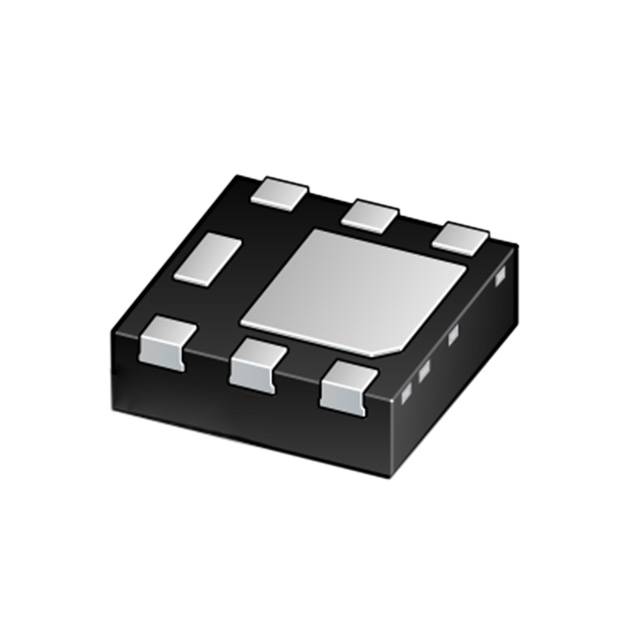

• Package / Case 6-UDFN Exposed Pad
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 150°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 12.9A (Tc)
• Rds On (Max) @ Id, Vgs 43mOhm @ 4.8A, 10V
• Power Dissipation (Max) 1.7W (Ta), 12.5W (Tc)
• Vgs(th) (Max) @ Id 3V @ 250µA
• Supplier Device Package DFN2020MD-6
• Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
• Vgs (Max) ±20V
• Drain to Source Voltage (Vdss) 60 V
• Gate Charge (Qg) (Max) @ Vgs 24 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 612 pF @ 30 V
