Technical Details

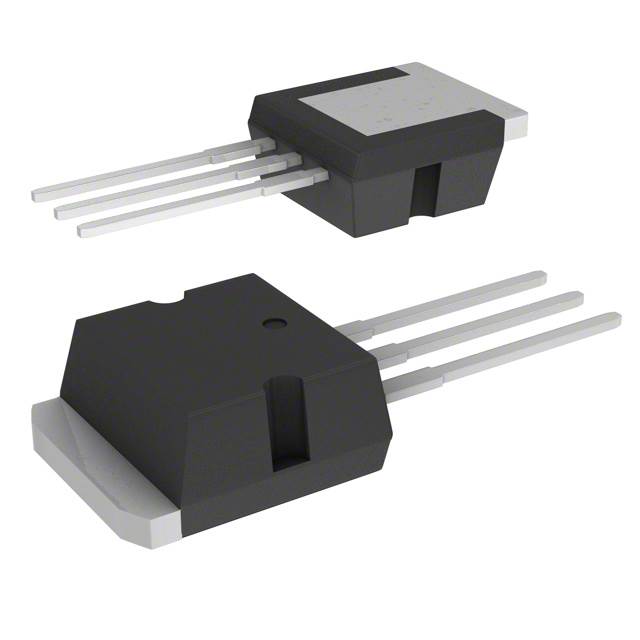

• Package / Case TO-262-3 Long Leads, I2PAK, TO-262AA
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 70A (Tc)
• Rds On (Max) @ Id, Vgs 9.5mOhm @ 35A, 10V
• Power Dissipation (Max) 100W (Tc)
• Vgs(th) (Max) @ Id 1V @ 250µA
• Supplier Device Package TO-262 (I2PAK)
• Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
• Vgs (Max) ±18V
• Drain to Source Voltage (Vdss) 30 V
• Gate Charge (Qg) (Max) @ Vgs 30 nC @ 5 V
• Input Capacitance (Ciss) (Max) @ Vds 1440 pF @ 25 V
