Technical Details

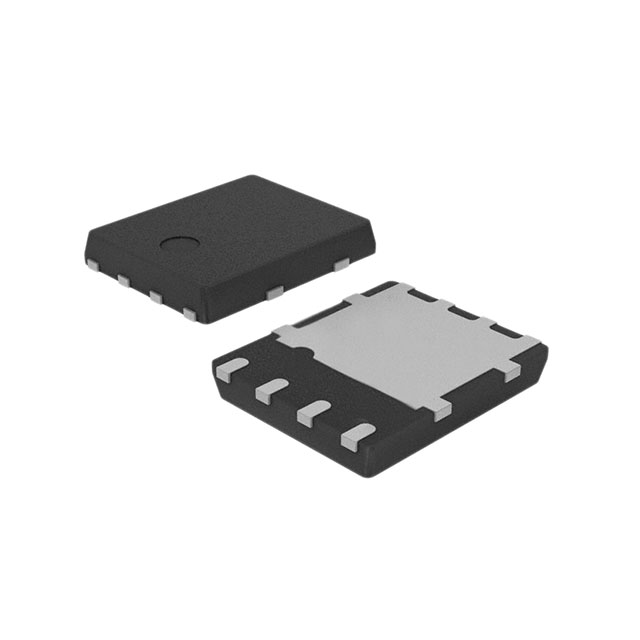

• Package / Case 8-PowerVDFN
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 150°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 120A (Tc)
• Rds On (Max) @ Id, Vgs 3mOhm @ 14A, 4.5V
• Power Dissipation (Max) 80W (Tc)
• Vgs(th) (Max) @ Id 700mV @ 250µA (Min)
• Supplier Device Package PowerFlat™ (5x6)
• Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
• Vgs (Max) ±8V
• Drain to Source Voltage (Vdss) 20 V
• Gate Charge (Qg) (Max) @ Vgs 29 nC @ 2.5 V
• Input Capacitance (Ciss) (Max) @ Vds 4660 pF @ 15 V
