Technical Details

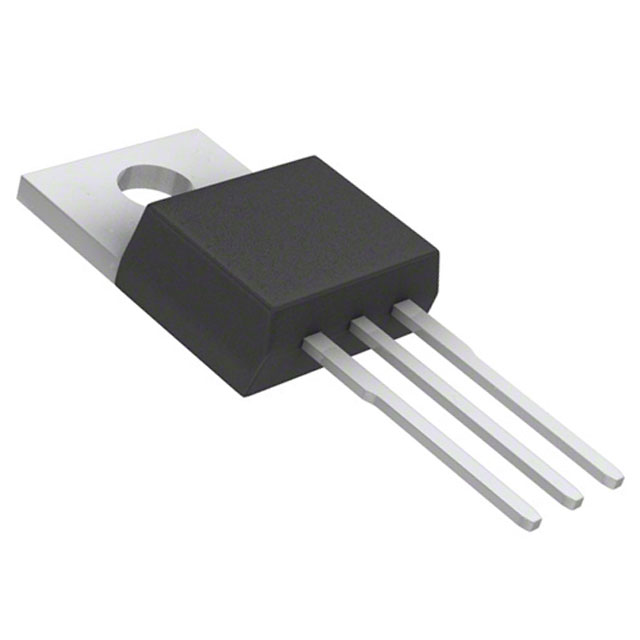

• Package / Case TO-220-3
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 27A (Tc)
• Rds On (Max) @ Id, Vgs 50mOhm @ 14A, 11V
• Power Dissipation (Max) 88W (Tc)
• Vgs(th) (Max) @ Id 5V @ 2mA
• Supplier Device Package TO-220AB
• Drive Voltage (Max Rds On, Min Rds On) 11V
• Vgs (Max) ±30V
• Drain to Source Voltage (Vdss) 75 V
• Gate Charge (Qg) (Max) @ Vgs 19 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 810 pF @ 25 V
