Technical Details

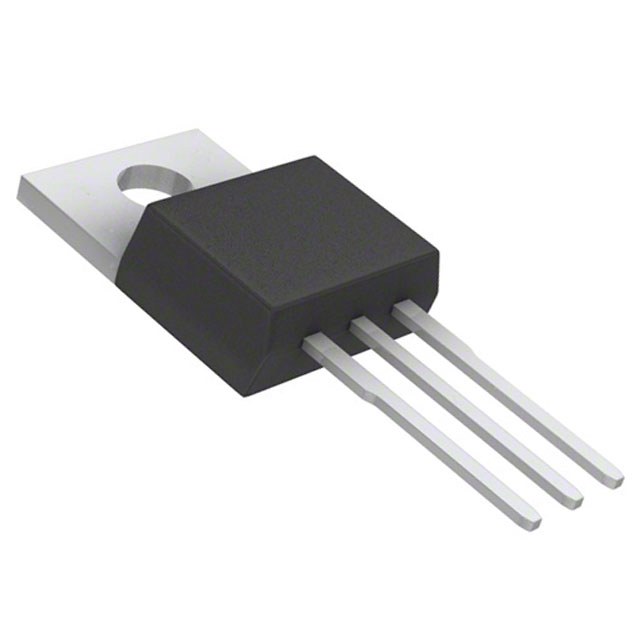

• Package / Case TO-220-3
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 23A (Tc)
• Rds On (Max) @ Id, Vgs 70mOhm @ 13A, 10V
• Power Dissipation (Max) 100W (Tc)
• Vgs(th) (Max) @ Id 4V @ 1mA
• Supplier Device Package TO-220AB
• Drive Voltage (Max Rds On, Min Rds On) 10V
• Vgs (Max) ±20V
• Drain to Source Voltage (Vdss) 110 V
• Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 830 pF @ 25 V
