技术参数

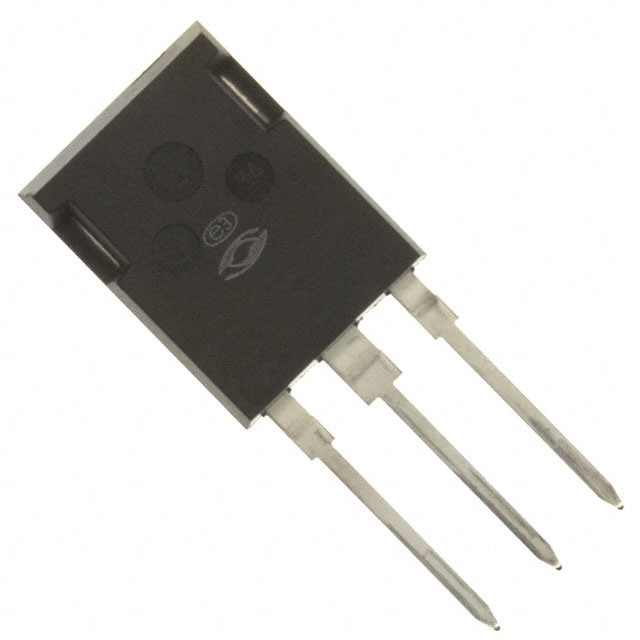

• Package / Case TO-247-3 Variant
• Mounting Type Through Hole
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 47A (Tc)
• Rds On (Max) @ Id, Vgs 100mOhm @ 500mA, 10V
• Vgs(th) (Max) @ Id 4V @ 2.5mA
• Supplier Device Package T-MAX™ [B2]
• Drain to Source Voltage (Vdss) 500 V
• Gate Charge (Qg) (Max) @ Vgs 470 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 8900 pF @ 25 V
• ECCN EAR99
• HTSUS 8541.29.0095
• Moisture Sensitivity Level (MSL) 1 (Unlimited)
• REACH Status REACH Unaffected
• RoHS Status ROHS3 Compliant
