Technical Details

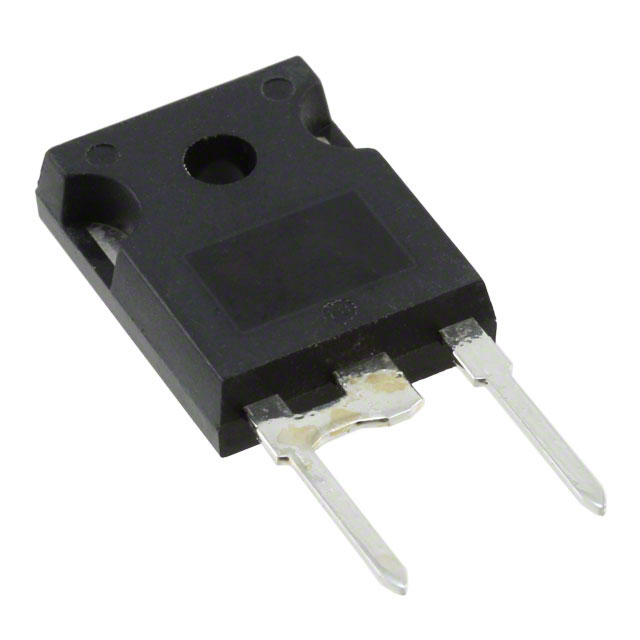

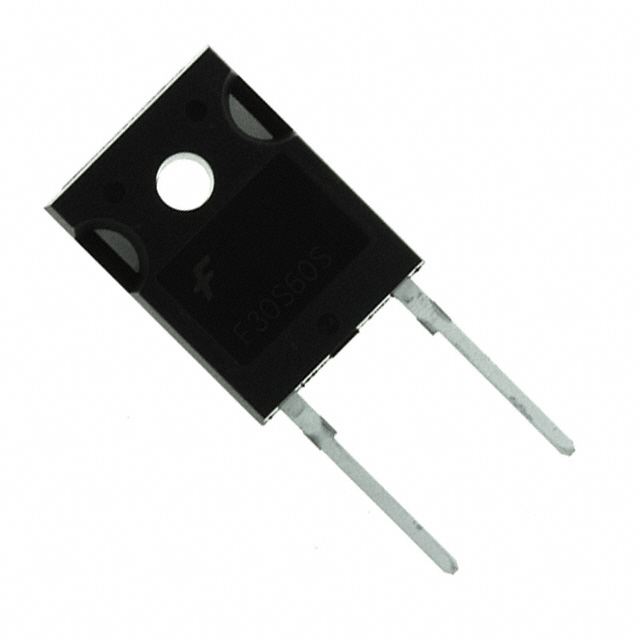

• Package / Case TO-247-2
• Mounting Type Through Hole
• Speed Fast Recovery =< 500ns, > 200mA (Io)
• Reverse Recovery Time (trr) 40 ns
• Technology Standard
• Current - Average Rectified (Io) 30A
• Supplier Device Package TO-247-2
• Operating Temperature - Junction -65°C ~ 150°C
• Voltage - DC Reverse (Vr) (Max) 600 V
• Voltage - Forward (Vf) (Max) @ If 2.6 V @ 30 A
• Current - Reverse Leakage @ Vr 100 µA @ 600 V
