Technical Details

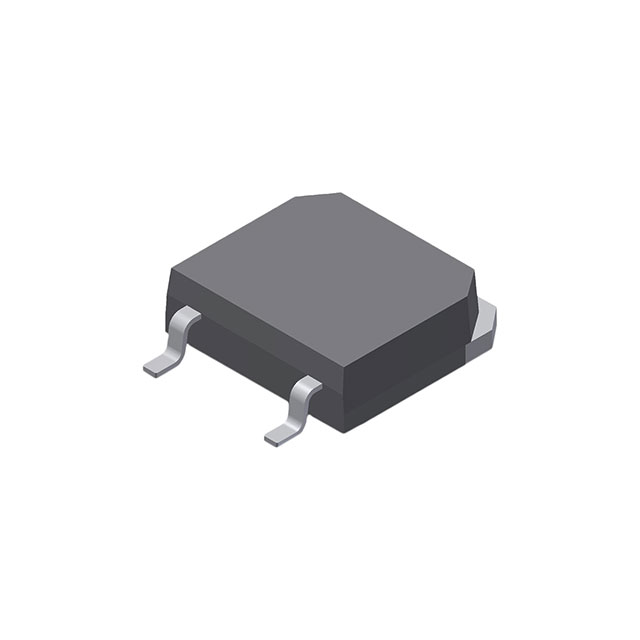

• Package / Case TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
• Mounting Type Surface Mount
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 22A (Tc)
• Rds On (Max) @ Id, Vgs 240mOhm @ 11A, 10V
• Vgs(th) (Max) @ Id 5V @ 1mA
• Supplier Device Package D3PAK
• Drain to Source Voltage (Vdss) 500 V
• Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 1900 pF @ 25 V
